Weigh In Motion

Weigh-In-Motion is an effective method to avoid ODOL vehicles (Over Dimension Over Load).

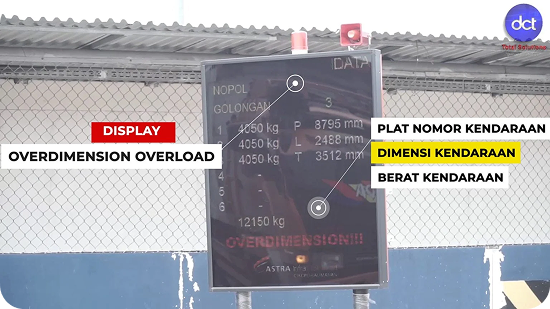

Over Dimension refers to a condition where the dimensions of the vehicle’s cargo do not comply with production standards and regulatory requirements, while Over Load refers to a condition where the vehicle carries a load exceeding the established weight limit.

ODOL vehicles can cause serious problems, including:
ODOL vehicles can damage road and bridge assets.
ODOL vehicles significantly reduce the lifespan of infrastructure and increase maintenance costs.
ODOL vehicles can lead to dangerous traffic accidents.

Features Weigh In Motion

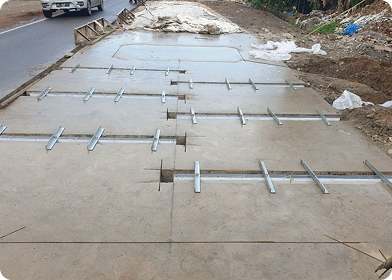

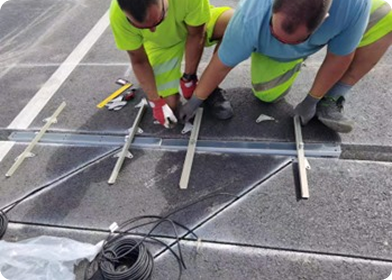

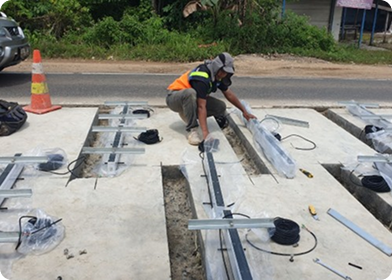

Weigh In Motion

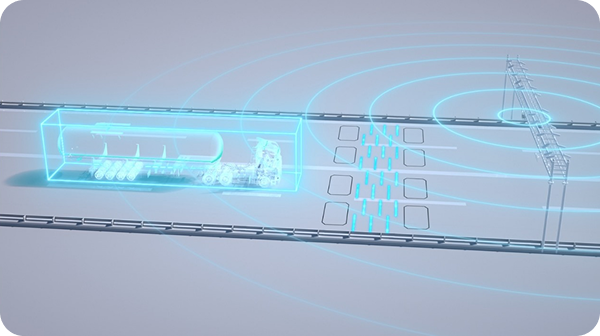

High Speed WIM

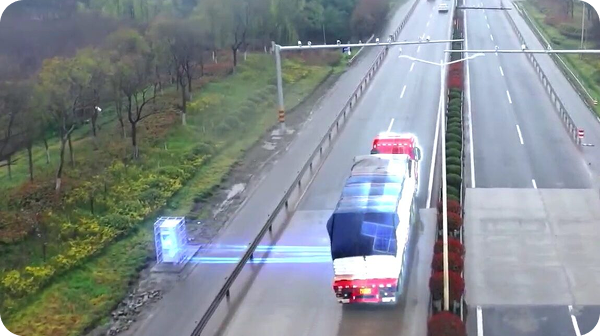

Data Logger

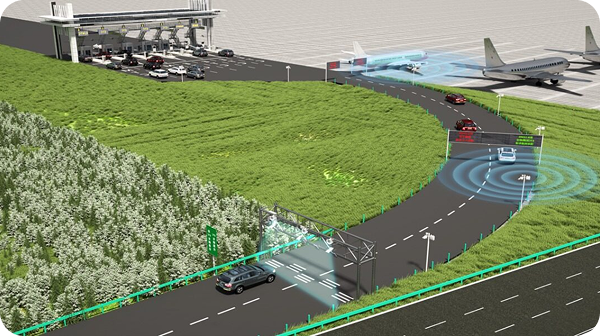

Dimension Measuring Tool

Size 975mm*76mm*76mm
Material Alloy steel
Input Electrical Resistance 3.0KΩ output electrical resistance : 2.8KΩ
Sensitivity 0.415mV/V
Non Linear Ratio 0.2%LD
Repeatability 0.1%FS
Insulation Resistance 5X109
Rated Load (Wheel Load) 15t
Overload Capacity 150%
Protection Class IP68 Can use in the water
Temperature Range -40°C~ +80°C
Sensor Lifespan ≥20 million axles
Sensor Weight (975mm) 40kg
CE Certification Passed
